ESC 100A

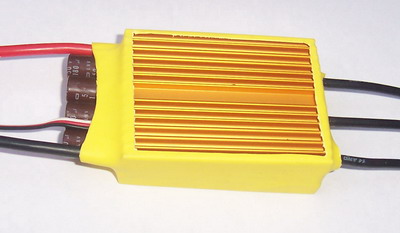

Brushless motor speed controller 100A low voltage

100A-LV

100ANEW

100A -HV

100A Specification



Cons
-Current

 Max
Current

BEC

Input

  TIMING

PWM
100A-LV

100A

125A

OPTO

6- 20NIMH

~2-7S LIPO

Programmable

- 1/7/15/30

programmable

- 8/16K

100A-HV

100A

125A

OPTO

18-30 NIMH

~6-10S LIPO

Programmable

- 1/7/15/30

programmable

- 8/16K



Weight

Size





70X50X13

User programming options:

    • Battery Setting
    • Throttle Range
    • Brake Setting 4 options:
    • Direction and Cutoff Type
    • Timing Mode Setting: 1º /7º /15º/30º
    • PWM  Setting: 8K/16K

    Important Note: this ESC is Opto, without BEC supplying power to your Receiver, you need extra power source for your receiver. You can use a UBEC, a voltage regulator, or extra batteries as the power source for your receiver. If you hear the music tone repeat again and again for more than 3 times, you may need to check your power source to the receiver.

    Download Manual

Features:

  • Constant current 100A Max 125A  <60s
  • High Voltage Li-Poly 6-10 cells, Ni-MH 18-30 cells
  • Low resistant 0.0010 ohms;
  •  Dynamic braking
  • BEC: OPTO
  • Auto shut down when lose signal
  • Slow down at 3.0V per cell Lipo, Cut-off at 2.9V per cell Lipo 0.8V Nimh
