ESC 200A

200A

200A

200A-HV200A

Features:

  • Constant current 200A
  • High Voltage 10S/15S
  • Low resistant 0.0008 ohms;
  •  Dynamic braking
  • BEC: OPTO
  • Auto shut down when lose signal
  • Slow down at 3.0V per cell Lipo, Cut-off at 2.9V per cell Lipo 0.8V Nimh



Super High Voltage speed controller!

200A Speed controller

Cons
-Current

Max
Current

BEC

Input

TIMING

PWM

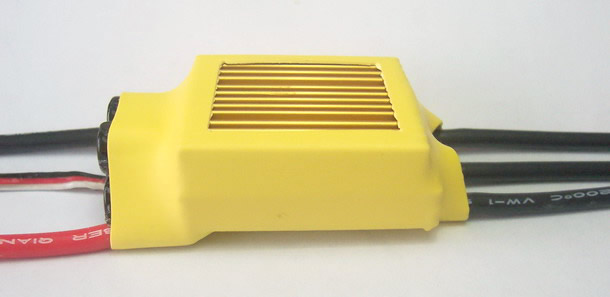

200A-LV
200A
Opto

5-22 NiMH

2-7S lipo

Programmable

- 1/7/15/30

programmable

- 8/16K

200A-10S

coming back soon

limited

Opto

20-40NIMH

~6-10LIPO

Programmable

- 1/7/15/30

programmable

- 8/16K

200A-15S

(out of stock)

limited Opto

30- 45MINH

~ 10-15LIPO

Programmable

- 1/7/15/30

programmable

- 8/16K







Weight

Size

220g

105X74X17

User programming options:

    • Battery Setting
    • Throttle Range
    • Brake Setting 4 options:
    • Direction and Cutoff Type
    • Timing Mode Setting: 1º /7º /15º/30º
    • PWM  Setting: 8K/16K

    Important Note: this ESC is Opto, without BEC supplying power to your Receiver, you need extra power source for your receiver. You can use a UBEC, a voltage regulator, or extra batteries as the power source for your receiver. If you hear the music tone repeat again and again for more than 3 times, you may need to check your power source to the receiver.
