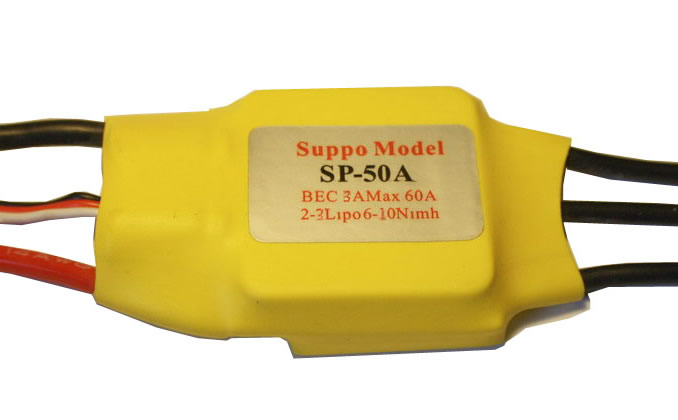

ESC 50A



50A esc





Features:
    • Constant current 50A, Max 60A
    • Li-Poly 2-7 cells; Ni-MH 6-20 cells
    • Low resistant 0.0025 ohms
    • Dynamic braking
    • No BEC: OPTO
    • Auto shut down when lose signal
    • Slow down at 3.0V per cell Lipo, Cut-off at 2.9V per cell Lipo 0.8V Nimh

50A Specification

Cons-
Current

 Max Current

BEC

Input

  Max RPM

  TIMING

PWM

50A

60A

NO

6-20NIMH

~2-7LIPO

20,000 (With A2212 / A2217 motors )

Programmable

- 1/7/15/30

programmable

- 8/16K



Weight

Size

46g 1.6oz

46X35X8



User programming options:

    • Battery Setting
    • Throttle Range
    • Brake Setting 4 options:
    • Direction and Cutoff Type
    • Timing Mode Setting: 1º /7º /15º/30º
    • PWM  Setting: 8K/16K

    Important Note: this ESC is Opto, without BEC supplying power to your Receiver, you need extra power source for your receiver. You can use a UBEC, a voltage regulator, or extra batteries as the power source for your receiver. If you hear the music tone repeat again and again for more than 3 times, you may need to check your power source to the receiver.
