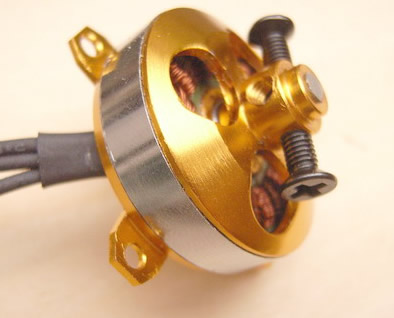

Brushless Outrunner motor
A2204 - 14 T
Only 19g, 0.67oz
A 2204 -14T motor Specification
Ideal for indoor 3D Flight, 220g and under, with 10A speed controller
|
No. Of cells |
RPM/V |
Max. efficiency current |
NoLoad current / 10 V |
Current |
|
Ni-MH |
Li-Poly |
|||||
A2204-14 |
6-10 |
2-3 |
1400 KV |
2 - 6 A (>74%) |
0.3 A |
7.5A/60 s |
Max. efficiency |
Shaft diameter (mm) |
Weight with cables |
Internal Resistance |
Dimensions (mm) |
|
A2204-14 |
75% |
|
19 g |
550mΩ |
27.6x11.5 |
| Recomended model weight | Recomended prop without gearbox | ||||
| A2204-14 | 3D 220 g and under | 2xLi 8040 | 3xLi 7035 | ||
An excellent motor for planes up to 220 grams (8 oz) using 2 li-poly cells. Very lightweight at 19 grams including integral prop saver for APC 8x3.8 SloFly or APC 8x4 E propeller and integral firewall mount. Great for small 3D planes weighing around 6 oz, or aerobatic planes up to 8 oz. Use with a 10 Amp brushless ESC and small 7.4V lithium batteries in the 400mah - 800mah range.
The motor features a 3mm hardened steel shaft, dual ball bearings, integral prop saver for APC E props and integral firewall mount flange. Note that the prop saver is sized for APC props. GWS props will need some modification to fit properly. Countersunk mounting holes have 31mm spacing on centers.
Similar to: AXI 2203/52, AXI 2204/54
combo 10A speed controller 8g, 0.29oz
