Brushless

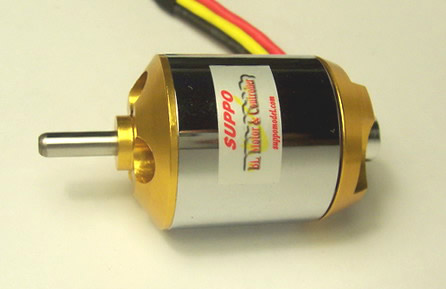

Out-runner A2826
A2826 Specificaton
|
No. Of cells |
RPM/V |
Max. efficiency current |
NoLoad current / 10 V |
Current capacity |
|
NIMH |
LIPO |
|||||
| A2826/4T | 8-14 | 3-5 | 1000 | 25-37A (>73%) | 2.9A | 50A/60s |
| A2826/5T | 8-14 | 3-5 | 840 | 20-32A (>73%) | 2.1A | 45A/60s |
A2826/6T |
8-14 |
3-5 |
730 |
15 - 28 A ( >73%) |
1.5 A |
37 A |
|
Max. efficiency |
Shaft diameter (mm) |
Weight with cables |
Internal Resistance |
Dimensions (mm) |
| A2826/4T | 83% | 5mm | 175g | 28mΩ | 35*54 |
| A2826/5T | 83% | 5mm | 175g | 40mΩ | 35*54 |
A2826/6T |
82% |
5 mm |
175 g |
59 mΩ |
35x54 |
| Recomended model weight | Recomended prop without gearbox | |||
| A2826/4T | 3s 14*6 | 4s 13*6 | 5s Heili | |
| A2826/5T | 3s 14*7 | 4s 11*8 | 5s 11*6 | |
| A2826/6T | 1000 - 2500 g | 3s 14*7 | 4s 13*8 | 5s 11*8 |
