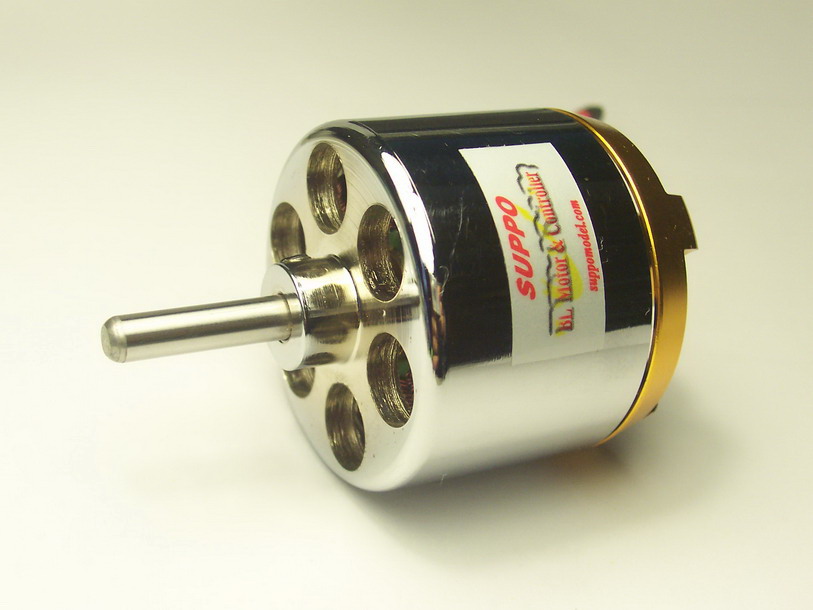

U/A3520 Specificaton
|
No. Of cells |
RPM/V |
Max. efficiency current |
NoLoad current / 10 V |
Current capacity |
|
NIMH |
LIPO |
|||||
New U3520/6 |
8-20 |
3-7 |
840 KV |
18 - 40 A (>75%) |
2.1 A |
50 A |
A3520/6 |
8-15 |
3-5 |
800 KV |
18 - 40 A (>75%) |
2.1 A |
50 A |
|
Max. efficiency |
Shaft diameter (mm) |
Weight with cables |
Internal Resistance |
Dimensions (mm) |
New U3520/6 |
82% |
5 mm |
200 g |
50 mΩ |
42x47 |
A3520/6 |
82% |
5 mm |
200 g |
50 mΩ |
42x47 |
| Recomended model weight | Recomended prop without gearbox | ||||
| U3520/6 | 1500~2800g | 12Cell 12*6 | 4S 12*6 |
Support higher voltage means more RPM for higher speed.
Try that youself to find out more.
Recommend to go with our 50A
or
60A speed controller
