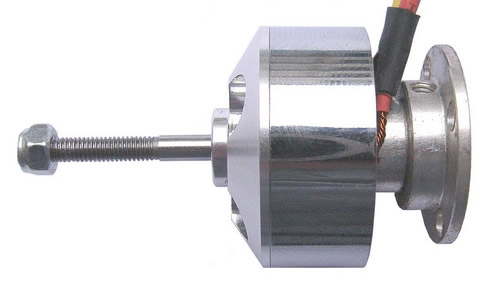

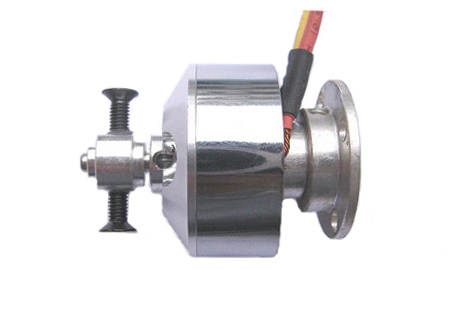

Low cost Combo Brushless motor + controller
B2208 + 18A Specification
|
No. Of cells |
RPM/V |
Max. efficiency current |
NoLoad current / 10 V |
Current |
|
Ni-MH |
Li-Poly |
|||||
B2208/17 |
8-10 |
2-3 |
1100 KV |
4 - 7 A (>74%) |
0.4 A |
8A/60 s |
B2208/14 |
6-8 |
2-3 |
1450 KV |
5 - 9 A (>74%) |
0.6 A |
12 A |
B2208/12 |
6-8 |
2-3 |
1800KV |
6 - 10 A (>74%) |
0.8 A |
16 A |
Max. efficiency |
Shaft diameter (mm) |
Weight with cables |
Internal Resistance |
Dimensions (mm) |
|
B2208/17 |
80% |
3 mm |
36 g |
225 mΩ |
27.5x26 |
B2208/14 |
80% |
3 mm |
36g |
140 mΩ |
27.5x26 |
B2208/12 |
78% |
3 mm |
36 g |
90 mΩ |
27.5x26 |
With 18A ESC, Not programmable
Cons-Current |
BEC |
Input |
Weight |
Brake | Size |
18A |
2A |
2-3LIPO |
20g |
off | 23.5x15.7x6.1mm |
Features:
Light weight With 2A BEC
Lipo Battery Auto-detect
Auto Low slow down at 6V/2S Lipo, 8V/3S Lipo
Auto shut down without signal
| Recomended model weight | Recomended prop without gearbox | ||||
| A2208/17 | 200 - 500 g | 2xLi 10"x5" | 3xLi 9"x5" | 10 cells 8.5"x5" | |
| A2208/12 | 200 - 500 g | 2xLi 8"x4.5" | 3xLi 7"x4" | 8 cells 8.5"x5" | |
