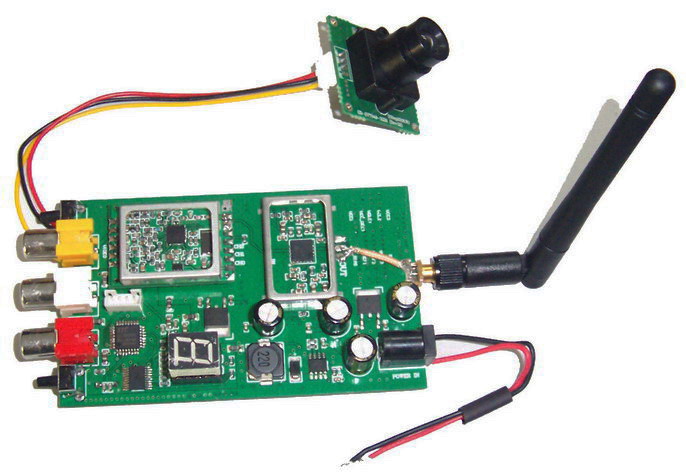

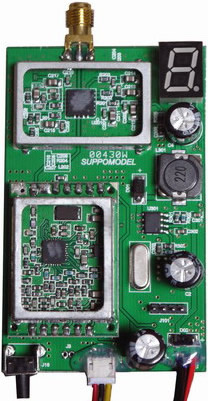

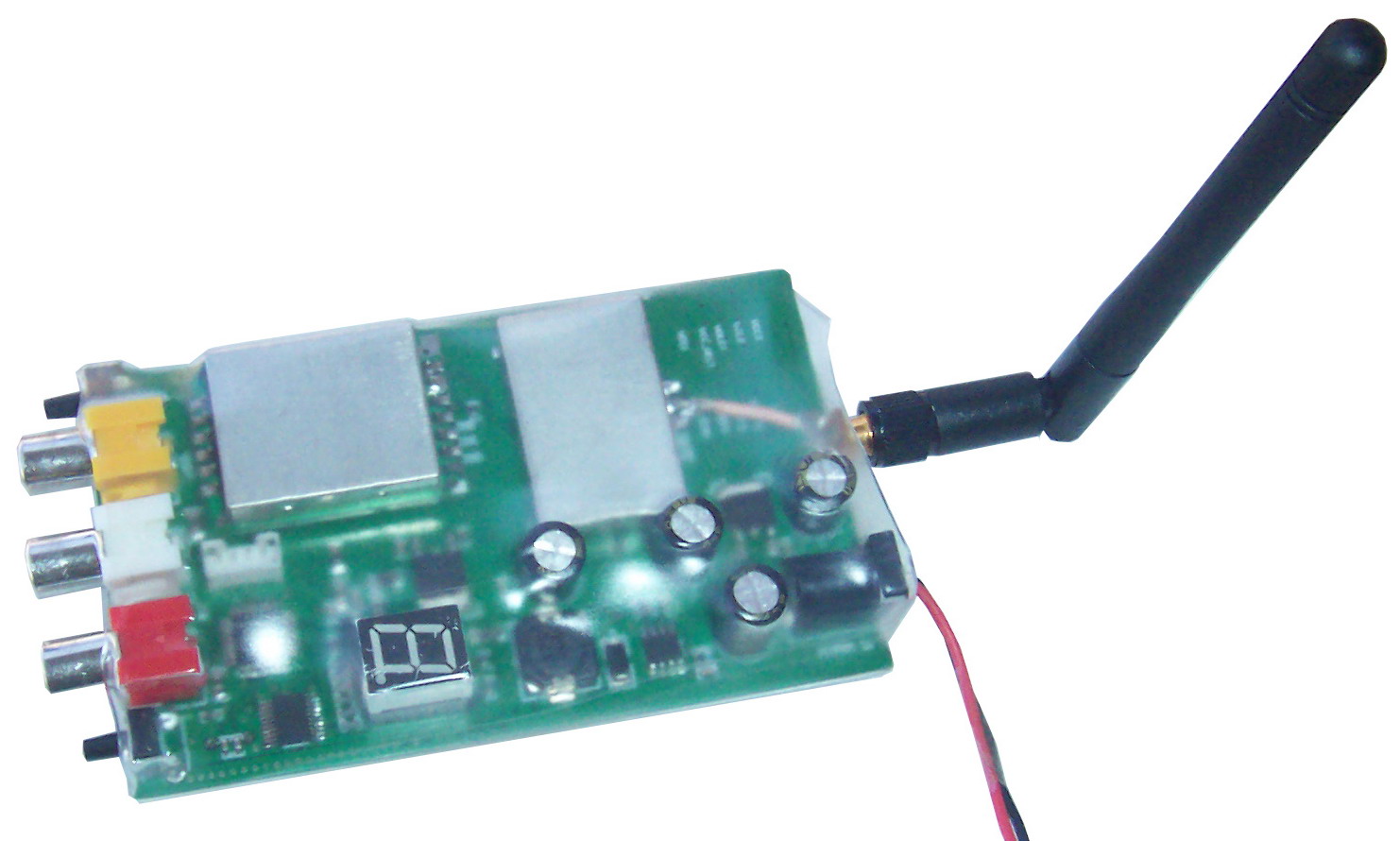

SUPPO V-Tx 2.4ghz Video transmitter Receiver

FPV Version 8 channels 1000mW 30dbm 1500 meter

Special designed for FPV:

For surveilliance version please click

Features:

• Transmission distance without obstacle Min.1500 meter with 2dbi antenna (field tested)

See field test images

Specification:

Frequency: 2.4Ghz 8 channels

Easy connection with OSD module and Camera

RF Power	1000mW
Power Consumption	6W (Transmitter)
Current consumption:	500mA ( transmitter ); 140mA(Receiver)
Supply voltage:	8V-15V
Input/Output	Video*1 + Audio*2
Intermediate frequency	480MHz
Video output level	1Vp-p
Audio output level	1Vp-p
Receiving signal:	Video *1; Audio*2
Working temperature:	-20-50°C /-4-122°H
Input sensitivity:	-87dBm
Dimension:	Transmitter: 45*71.2 (mm) Receiver: 85*71.2 (mm)
Weight:	Transmitter: 48g Receiver: 145g

IMPORTANT NOTICE:

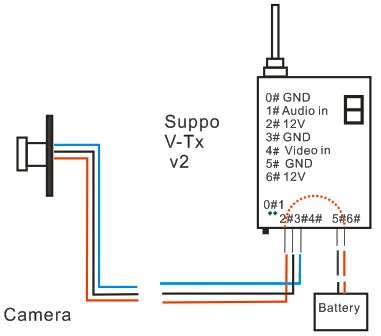

1. Make sure your camera allow 12V input. If you use 5V camera with power input from the transmitter, your camera could be damaged.

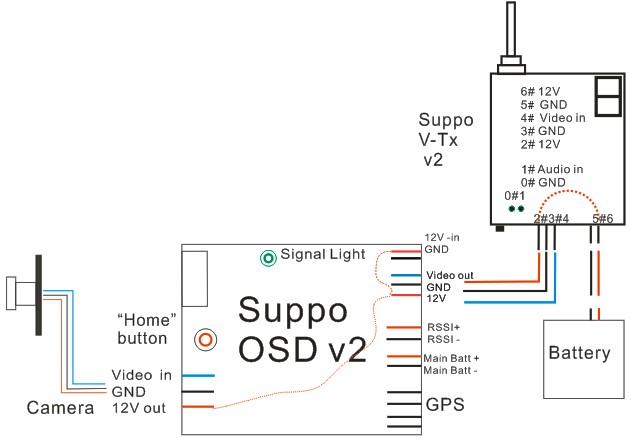

2. Check your camera wire's pin with OSD's or the V-tran's.

Camera’s Video out -- OSD’s Video in,
Camera’s GND -- OSD’s GND,
Camera’s 12V -- OSD’s 12V Out.
If you connect the wrong wire, your camera could be damaged.

for more information visit suppomodel.com

Accessories included:

Antenna 2dbi	* 2
TX Cable	*1
RX Cable	*1
