Firware download: |
||
OSD LED Ligh signal indication:
|
AVR Figher programming software (chinese interface) upgrade instruction (with AVR fighter- win XP) flashing instruction (with Progisp) Extrem Burner - AVR download (some people say this is more easy to use) |
|
lED ALWAYS ON: ---- Waiting for satellite signal
|
Leave the GPS open to sky. or power off and power on again. first time start up would take a longtime. | |
LED Short flash --- Can not find the GPS connection. (off for 0.2second )
|
check the GPS connection wires | |
LED flashing once a second --- OSD/GPS working good.(on/off for a second)
|
||

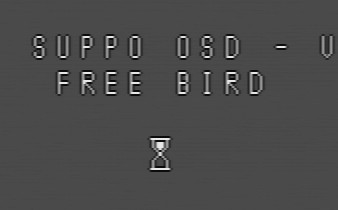

Normal start up After power up, the LED should be always on, the screep should shows " SUPPPO OSD V xxx - FREE BIRD" with a "Hour-glass" in the middle of the screen. |
||
Problem Altitude not Correct The altitude number is not accurate. the altitube of the OSD is based on the GPS signal, which is good at ground positioning but not altitude (or height). The more satellite signal received, it will be more accurate. It become worst when the satellites is weak. like if there are only 4 or 5 satellite signal received. the error could be +- 20 meter. if you need accurate altitude, you have to use atmospheric pressure meter |
||
