SUPPO OSD -- V2.31 " FREE BIRD "------------------- Manual download - FAQ/Firmware

Difference of wiring between V2.0/v3.0 and V2.31

New Version 2.31

Improved compatibility with NTSC camera

new feature:

unit mode for meter/KM or feet/mile

suppo OSD FPV V2

Available at

  1. 1hz OSD/GPS
  2. 5hz OSD/GPS

Manual download - FAQ/Trouble shoot

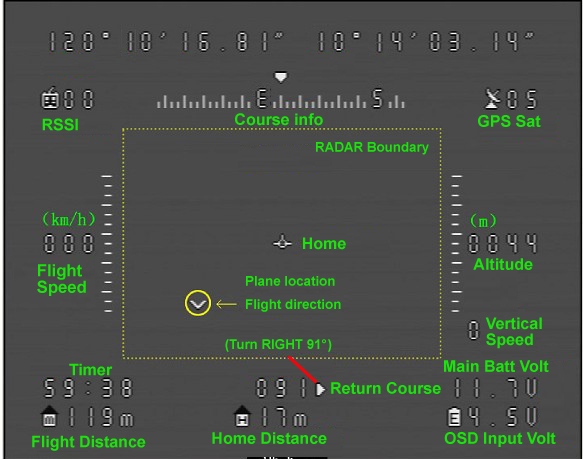

Longitude and Latitude Mode indication: longtitude mode



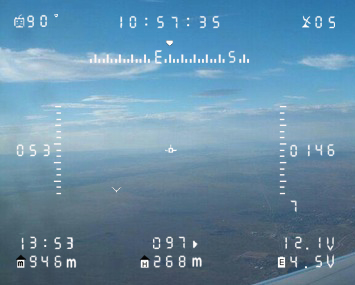

SUPPO OSD





suppo OSD FPV RC CAMERA



configuration menu:

NTSC ENABLE

0 每 Disabled

(for PAL)

1 每 Enabled

(for NTSC)

DISPLAY MODE

0 每Longitude and Latitude

1 每 GMT time

LOCATION MODE

0 每 ddd mm ssssss
ext :
E111∼ 15' 45.1813"
N23∼ 28' 2.4255"

1 - dddmm.mmmm
ext:
11115.4389
2328.22940

UNIT MODE

0 每 unit at meter (km when over 10km)

Speed at km/h

1 每 unit at feet (mile when over 10mile),

speed at mph

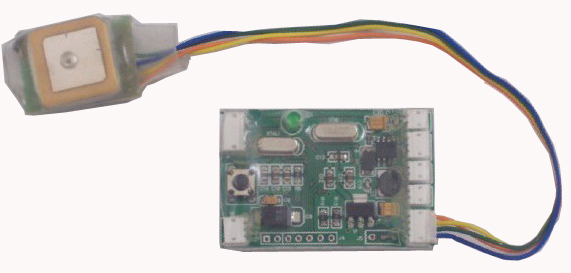

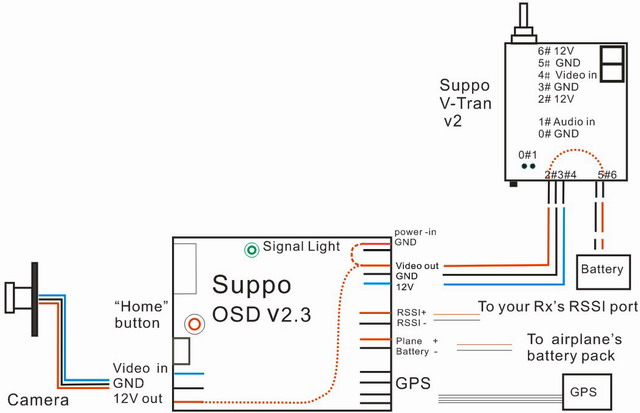

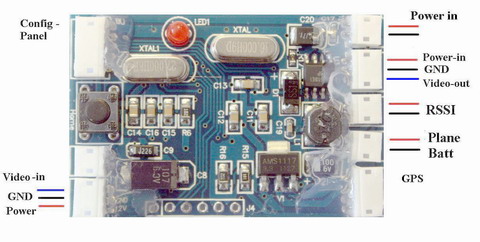

Diagram for V2.31 (Blue PCB on OSD Board)

For Green PCB OSD v2.0/v3.0 click

A easy way to have more fun with SUPOO OSD (On Screen Display) for RC FPV (First Person View flight).

Combine with our 2.4g long range transmitter and receiver , people can enjoy flying view from 6500 feet upon sky, which is a incrediable experience...
